POSIFIL PF

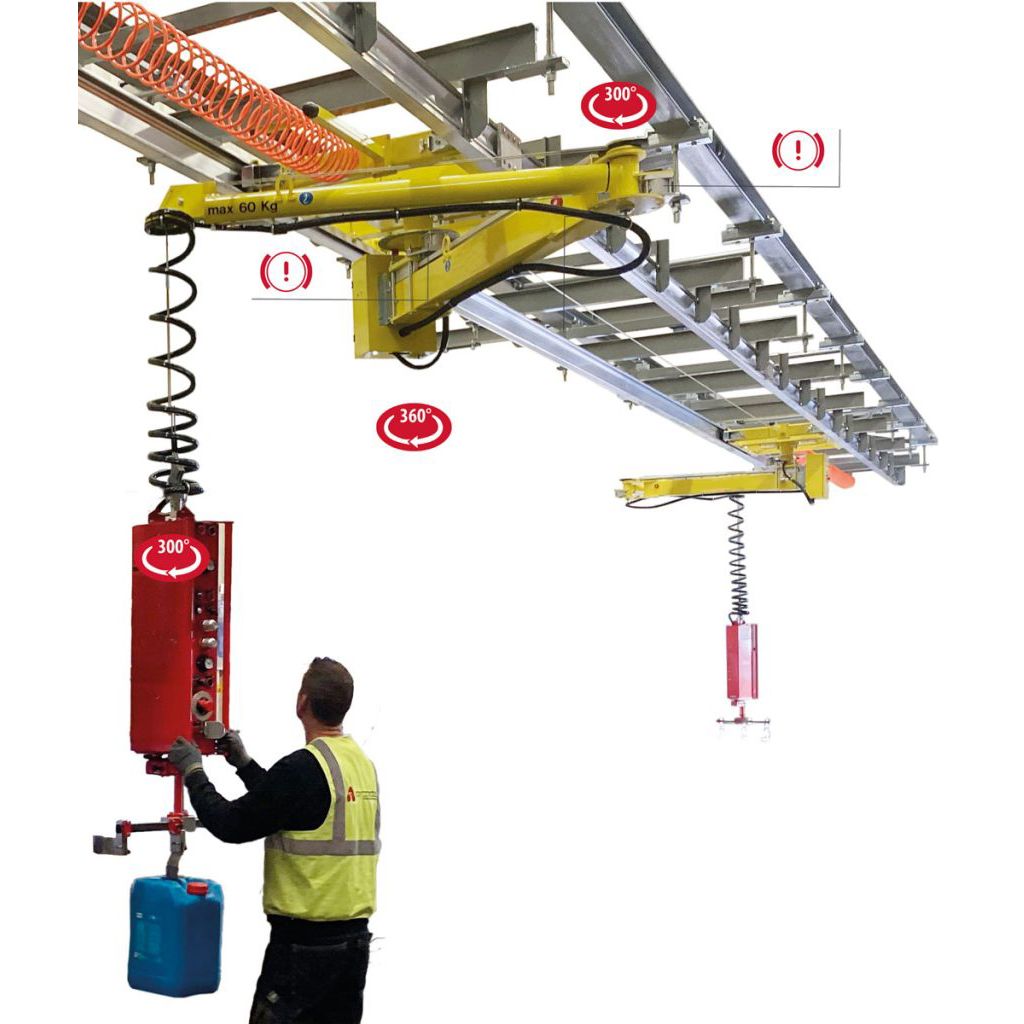

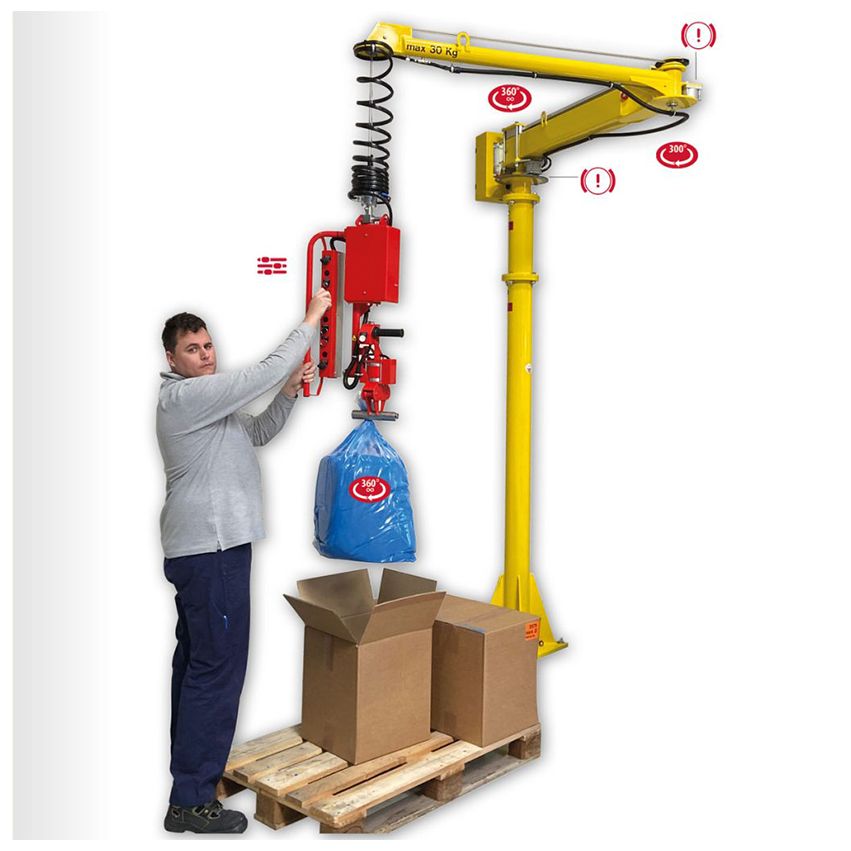

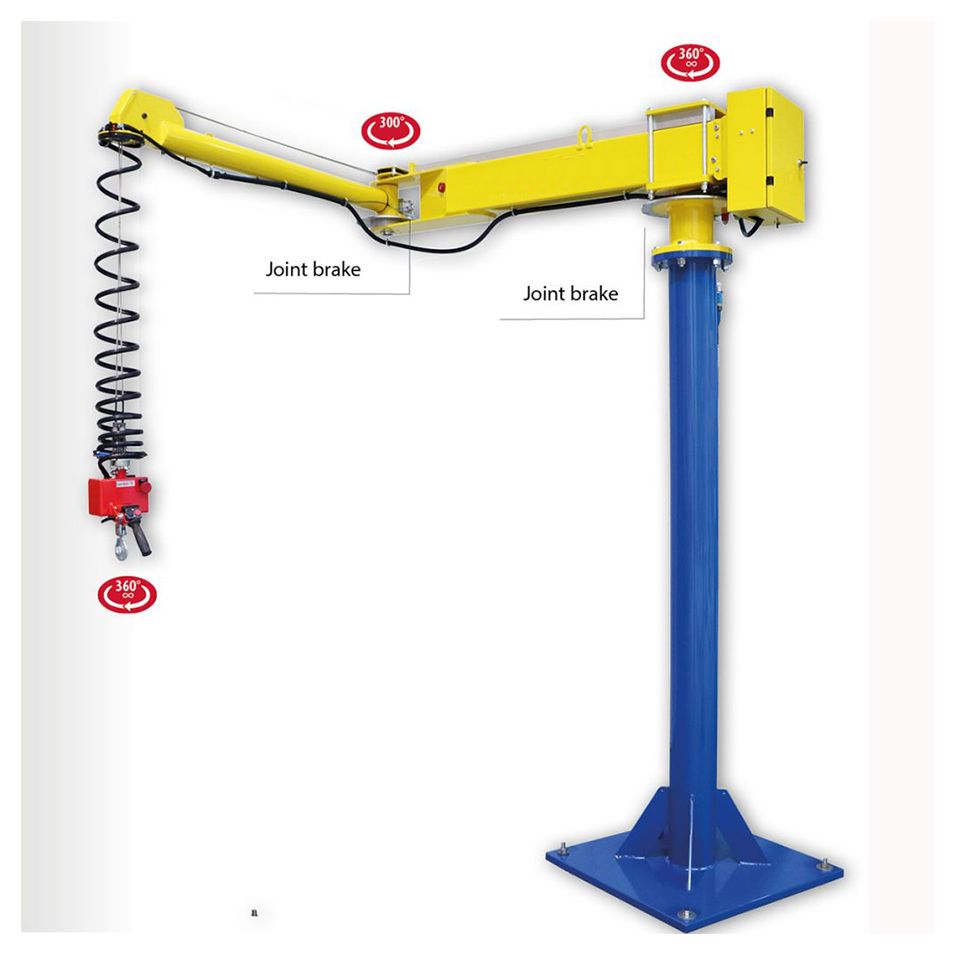

Pneumatic Manipulator POSIFIL PF with double cable equipped with simple gripping tools, allows the handling of light loads in a weightless condition, throughout the working area. The gripping tool is connected to the balancing group by two independent steel cables to guarantee max safety.  OPERATION A pneumatic cylinder fed with compressed-air, combined with a transmission lever system, provides balance to the load weight applied. The cylinder force is controlled through two pneumatic circuits purposely arranged: the first one always keeps the weight system balanced; the second one provides to always keep the weight load balanced. The operator can change the load level simply operating a pneumatic control lever. Anchorage systems: * Fixed base-plate * Portable base-plate for forklift truck transfer * Portable base-plate for pallet truck transfer * Portable base-plate for manual transport * Trolley mounted base-plate for floor tracks. * Floor built-in track. Anchor flange The pneumatic manipulator Partner PS fixed overhead version allows to eliminate any floor obstructions. The flange of the Manipulator is supplied with holes for the anchoring with screws to a strong plate to the ceiling or to a shelf. All movements are free and are obtained with minimum effort by the direct action of the operator on the gripping tooling or on the load. Anchor The Manipulator is supplied with an overhead trolley to run in a tracking system. Tracking system The tracking system is composed of two opposite aluminium U sections with connecting and stiffening ribs,complete with attachment points for an overhead suspension and end buffers. The junction between the various parts is done with screws. Attachment The attachment of the tracking system to the supporting structure is carried out by means of rods and suspension brackets
