MICROPARTNER MI

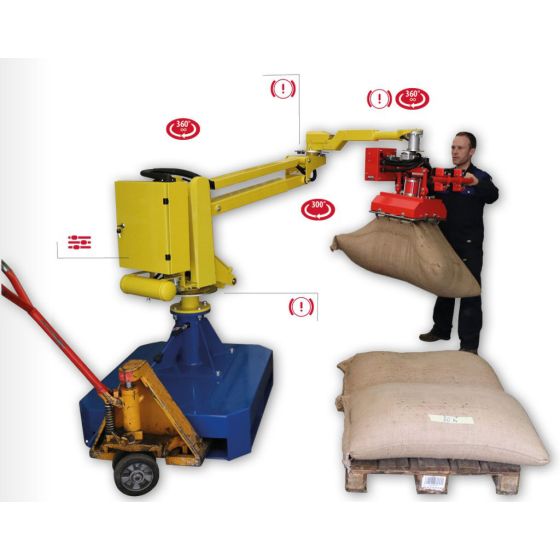

The MICROPARTNER MI is a lifting device particularly easy to handle, designed to move in a weightless condition medium-light, center and off-set loads in any direction. Equipped with special gripping tools it allows the operator to work quickly, with precision and without effort, in excellent ergonomic and safety conditions. OPERATING A pneumatic cylinder fed with compressed-air, combined with a transmission lever system, provides balance to the load weight applied. The cylinder force is controlled through two pneumatic circuits purposely arranged: the first one always keeps the weight system balanced; the second one provides to always keep the weight load balanced. The operator can change the load level applying a minimum force on the gripping tool or directly on the load. Anchorage systems: * Fixed base-plate * Portable base-plate for forklift truck transfer * Portable base-plate for pallet truck transfer * Portable base-plate for manual transport * Trolley mounted base-plate for floor tracks. * Floor built-in track. Anchor flange The pneumatic manipulator Partner PS fixed overhead version allows to eliminate any floor obstructions. The flange of the Manipulator is supplied with holes for the anchoring with screws to a strong plate to the ceiling or to a shelf. All movements are free and are obtained with minimum effort by the direct action of the operator on the gripping tooling or on the load. Anchor The Manipulator is supplied with an overhead trolley to run in a tracking system. Tracking system The tracking system is composed of two opposite aluminium U sections with connecting and stiffening ribs,complete with attachment points for an overhead suspension and end buffers. The junction between the various parts is done with screws. Attachment The attachment of the tracking system to the supporting structure is carried out by means of rods and suspension brackets • Using: For Reels, For Mechanics, For Panels, For Bags, For Boxes, For Bottles
