MEGAPARTNER ME

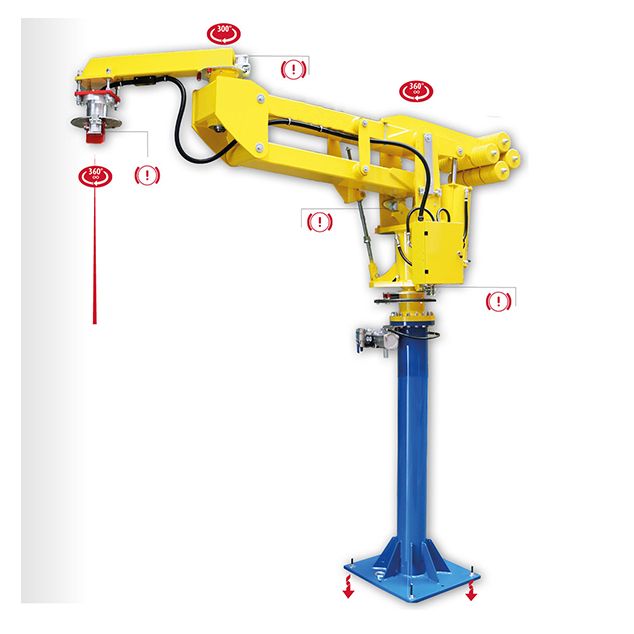

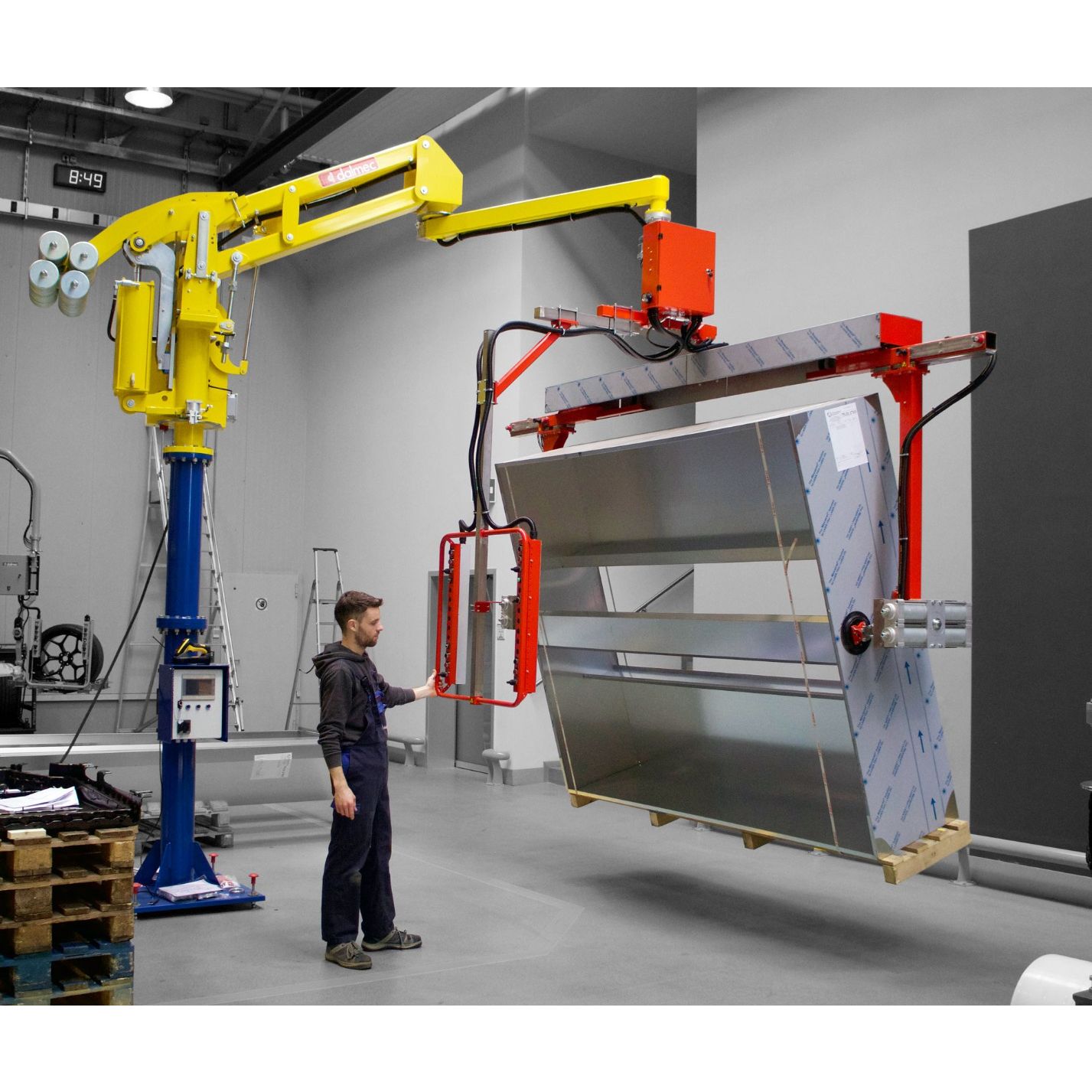

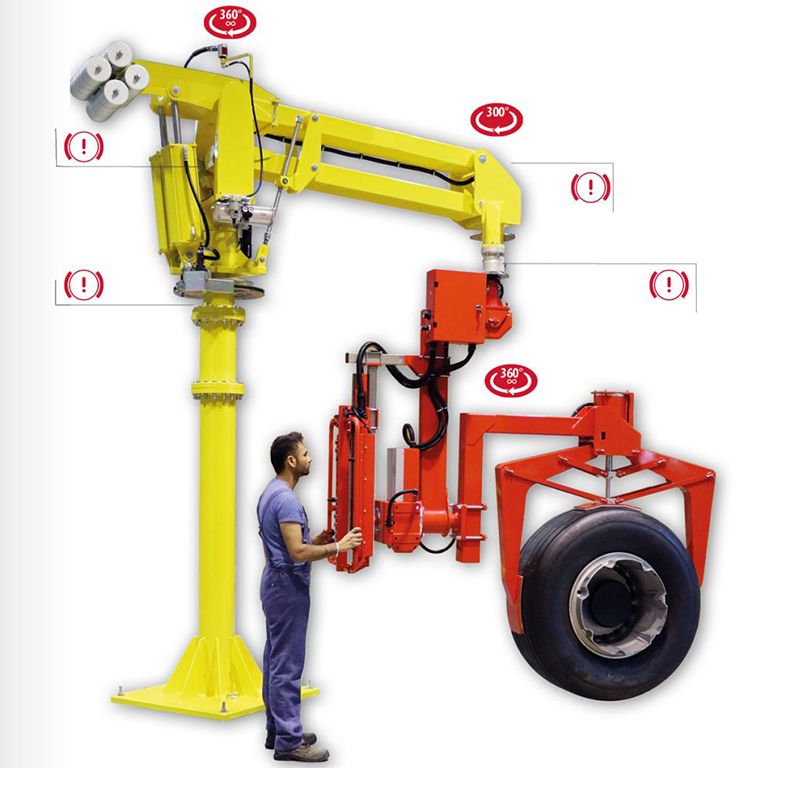

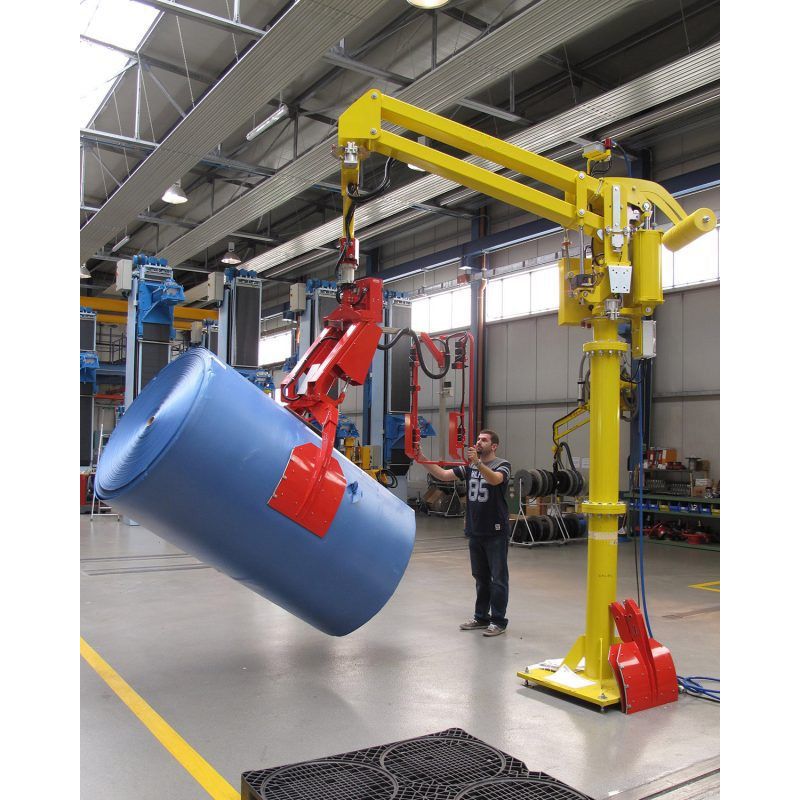

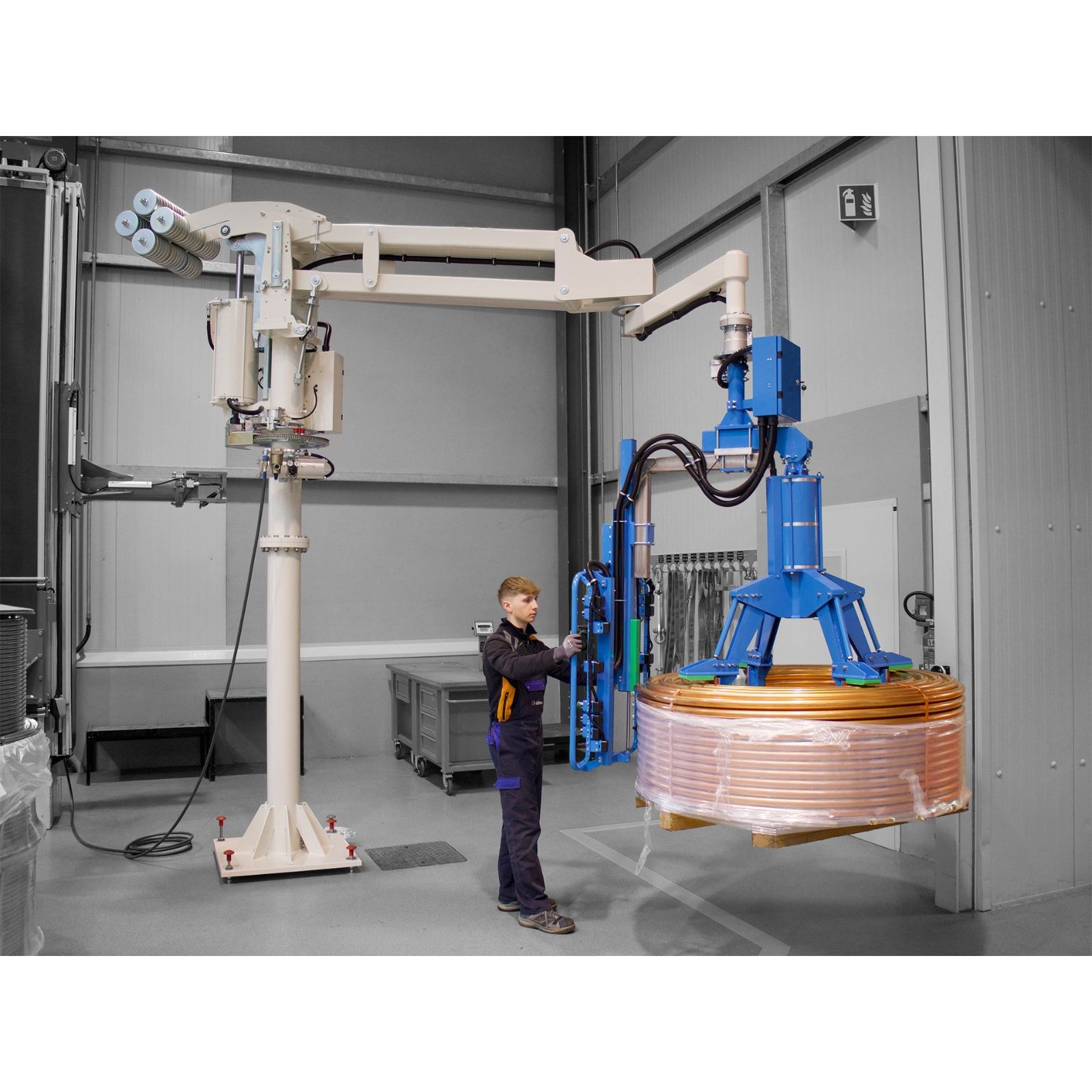

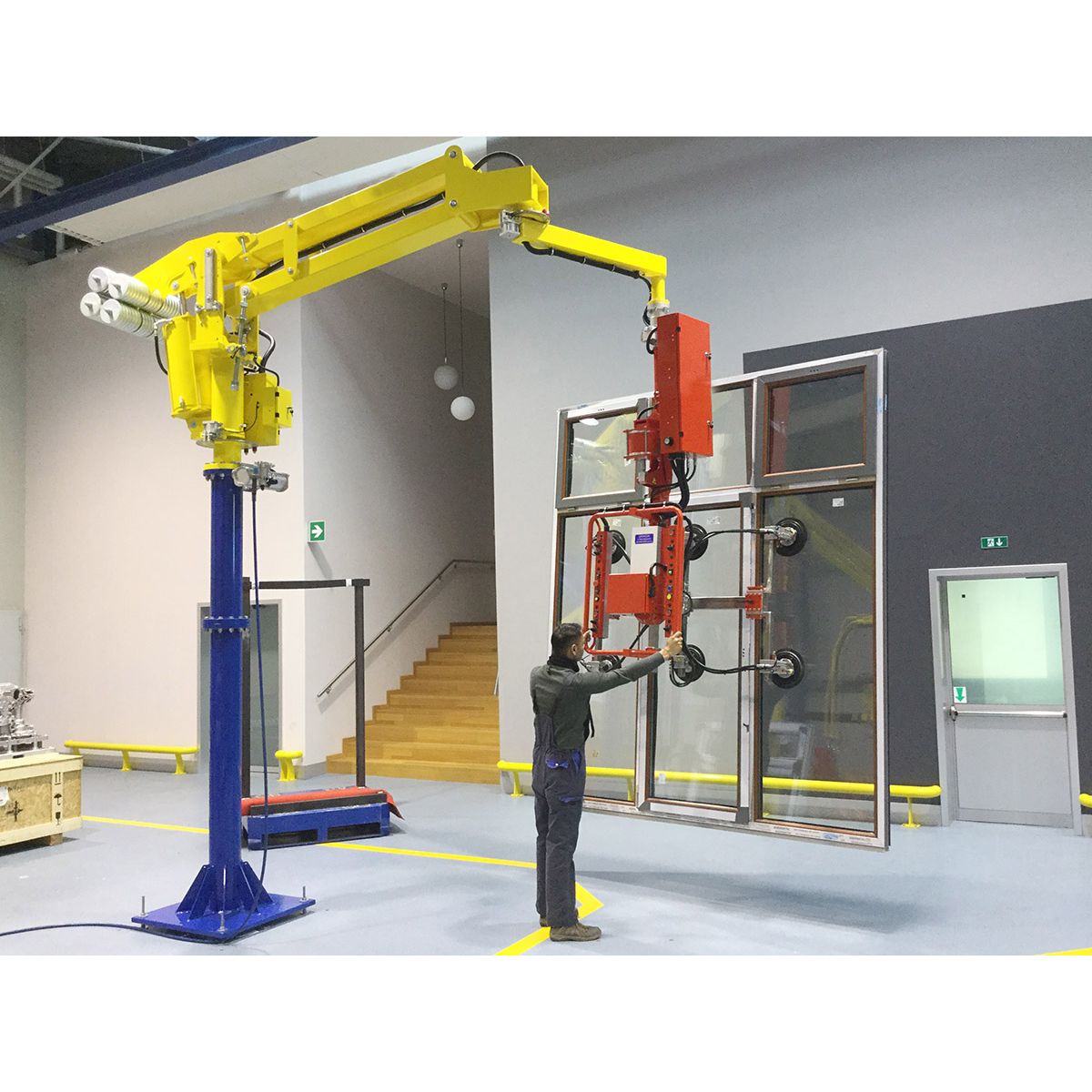

Pneumatic Manipulator MEGAPARTNER MG with articulated arms, equipped with special gripping tools, is suitable to handle heavy (max 1500 kg) and also off-set loads, in any direction, allowing the operator to work with the minimum effort in good ergonomic and safety conditions. OPERATION A pneumatic cylinder fed with compressed-air, combined with a transmission lever system, provides balance to the load weight applied. The cylinder force is controlled through two pneumatic circuits purposely arranged: the first one always keeps the weight system balanced; the second one provides to always keep the weight load balanced. The operator can change the load level simply operating a pneumatic control lever. Anchorage systems: * Fixed base-plate Anchor flange The pneumatic manipulator Maxipartner overhead version allows the elimination of any floor obstructions. The flange of the Manipulator is supplied with holes for the anchoring with screws to a strong plate to the ceiling or to a shelf. All movements are free and are obtained with minimum effort by the direct action of the operator on the gripping tooling or on the load. • Using: For Reels, For Mechanics, For Panels, For Paper reels, For Boxes, For Sheets
